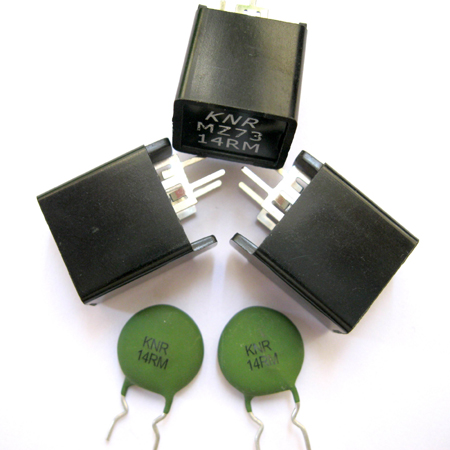

MZ7-type degaussing thermistor
- Description: Color TV and color monitors automatically degaussing components; Communicate the current limiting circuit components; This product has superior impact resistance current capacity, high pressure, residual flow, long life, reliability can be high.
MZ7-type degaussing thermistor
Color TV and color monitors automatically degaussing components;
Communicate the current limiting circuit components;
This product has superior impact resistance current capacity, high pressure, residual flow, long life, reliability can be high.
Applications
When color TV and Color boot, PTC thermistor in the low resistance state, degaussing coil to form high-current, magnetic line of force is greater than 350At, can effectively eliminate the effects of stray magnetic fields. PTC thermistor then at large under the influence of current into the high impedance state, loop current automatic attenuation, the residual current is very small, similar to open-circuit, magnetic 0.03At following line to achieve under normal operation within acceptable limits. Automatic degaussing PTC thermistor and should therefore have a larger impact on current and very low residual current, has better impact resistance and high voltage strength. At present, automatic degaussing PTC thermistor for the development trend of small size, low resistance, low residual current and high impact resistance, high reliability. Use conditions: ambient temperature -10 ℃ - +85 ℃, relative humidity 93 ± 2%.
Fig 1 Fig 2
Dimensions :
|
規(guī)格 |
DMAX （㎜） |
W ±1 （㎜） |
TMAX （㎜） |
Φd±0.05 （㎜） |
|
ANR-18RM |
15.0 |
9.0 |
6.0 |
0.8 |
How to Order
①Company trademarks
②Thermistor
③71-- Leading Ttype 72-- Segmental shell Type(Single-element / 2Pin) 73-- Segmental shell Type(Double-element / 3Pin)
④Resistance value at 25℃
⑤Resistance tolerance M-±20%，N-±30%
⑥AC
⑦Maximum voltage
Technical parameters
|
Part Number |
Resistance at 25℃ (Ω) |
Rated voltage (V) |
Maximum working voltage (V) |
Withstanding Voltage (V) |
Impulse Current (A) |
Residual current (mA) |
||
|
I0(P-P) |
I10(rms) |
I30(rms) |
I60(rms) |
|||||
|
ANR-MZ71 |
14±20％ |
220 |
270 |
360 |
≥20 |
≤20 |
≤10 |
≤6 |
|
18±20％ |
220 |
270 |
420 |
≥15 |
≤15 |
≤8 |
≤6 |
|
|
ANR-MZ72 |
7±20％ |
220 |
270 |
360 |
≥25 |
--- |
--- |
≤8 |
|
9±20％ |
220 |
270 |
360 |
≥25 |
≤22 |
≤12 |
≤7 |
|
|
12±20％ |
220 |
270 |
360 |
≥20 |
≤20 |
≤10 |
≤6 |
|
|
14±20％ |
220 |
270 |
360 |
≥20 |
≤20 |
≤10 |
≤6 |
|
|
18±20％ |
220 |
270 |
420 |
≥15 |
≤15 |
≤8 |
≤6 |
|
|
27±20％ |
220 |
270 |
420 |
≥15 |
≤15 |
≤8 |
≤5 |
|
|
ANR-MZ73 |
7±20％ |
220 |
270 |
360 |
≥25 |
--- |
--- |
≤1.5 |
|
9±20％ |
220 |
270 |
360 |
≥25 |
≤14 |
≤4 |
≤1.5 |
|
|
12±20％ |
220 |
270 |
360 |
≥20 |
≤10 |
≤3.5 |
≤1.0 |
|
|
14±20％ |
220 |
270 |
360 |
≥20 |
≤8 |
≤2.5 |
≤1.0 |
|
|
18±20％ |
220 |
270 |
420 |
≥15 |
≤8 |
≤2.5 |
≤1.0 |
|
|
27±20％ |
220 |
270 |
420 |
≥15 |
≤6 |
≤3 |
≤1.0 |
|
